COMPATIBILITY METHODS

✓ Cyclic Voltammetry (CV)
✓ Chronoamperometry (CA)
✓ Square Wave Voltammetry (SWV)
✓ Differential Pulse Voltammetry (DPV)
✓ Open Circuit Potentiometry (OCP)
✓ Electrochemical Impedance Spectroscopy (EIS)

TECHNICAL DATASHEET

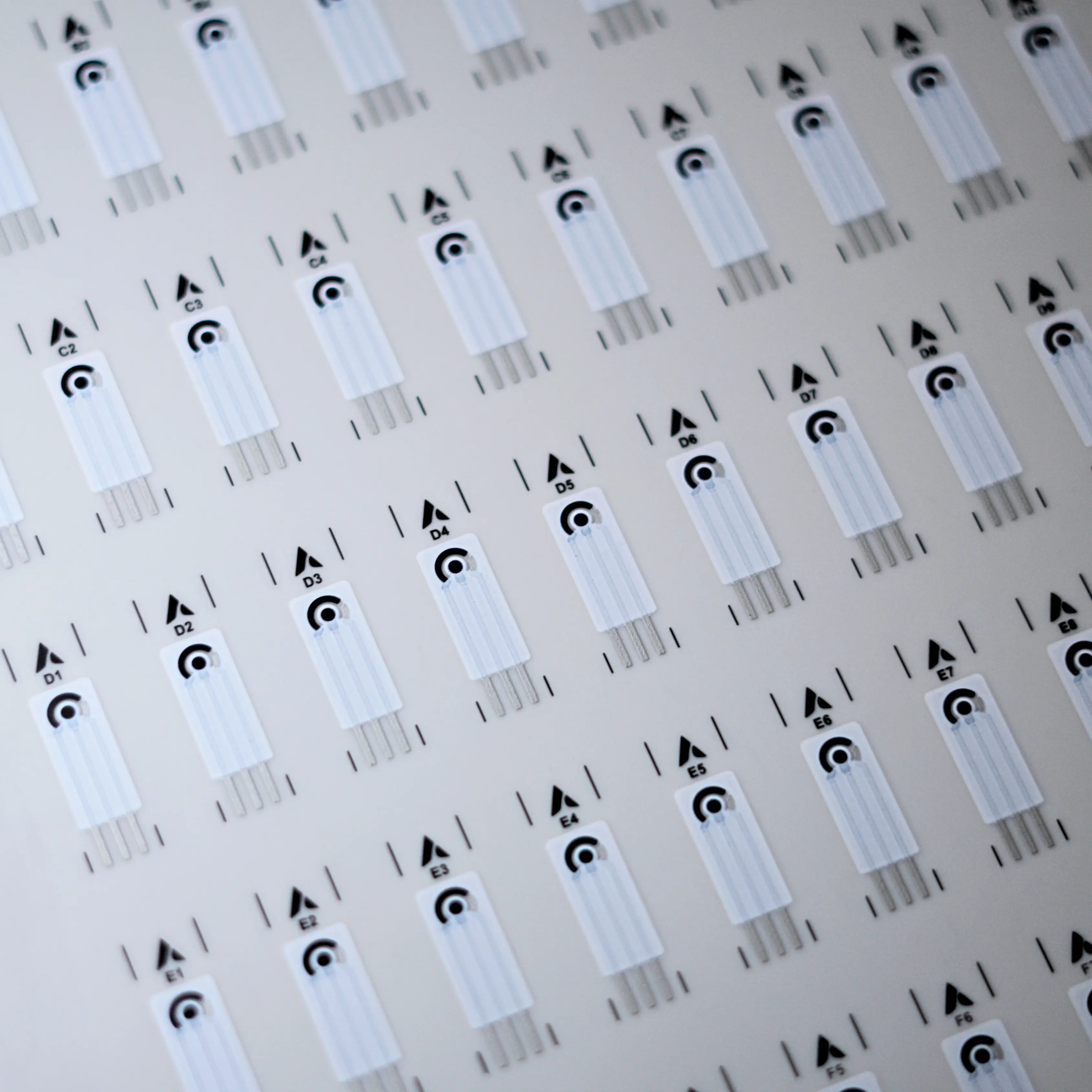

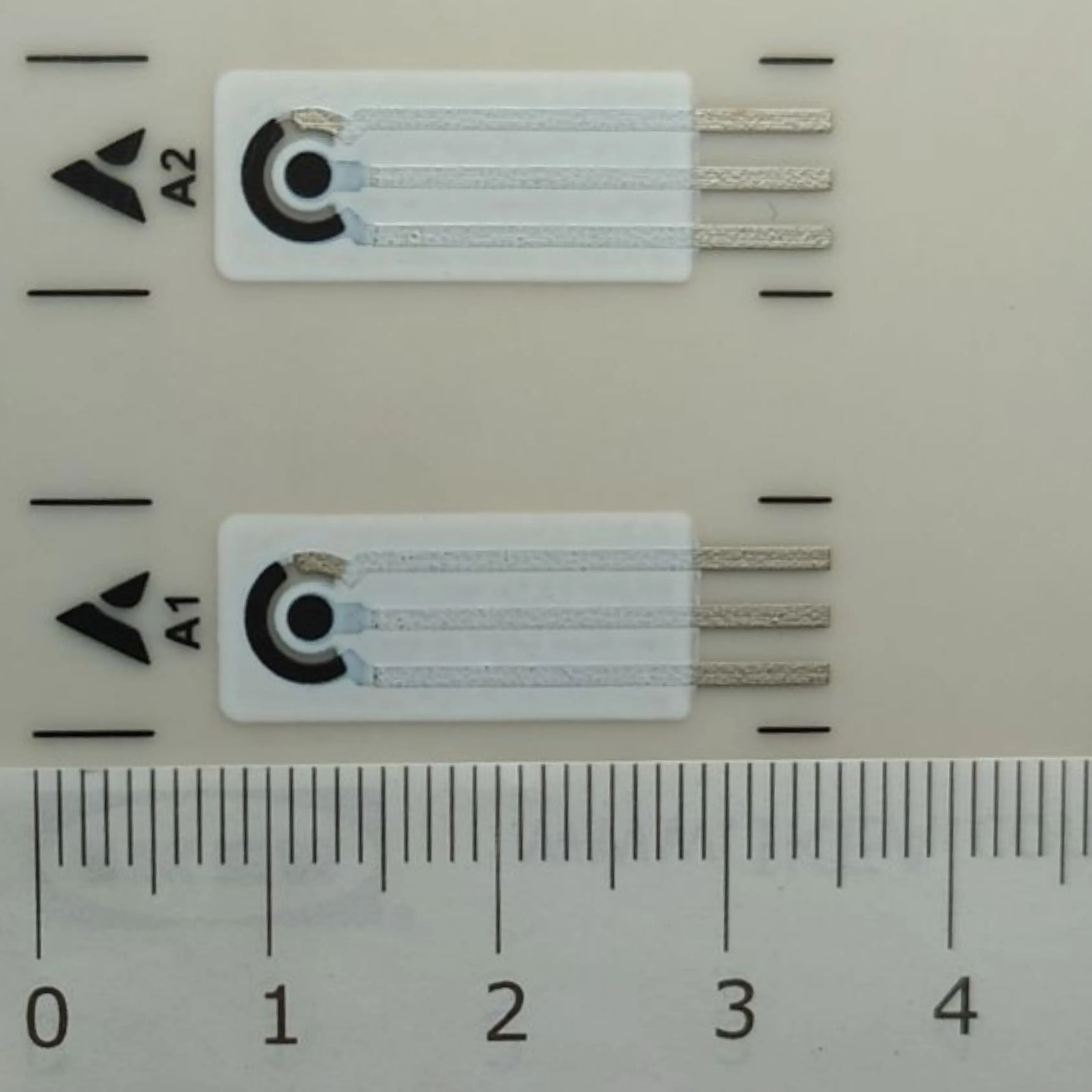

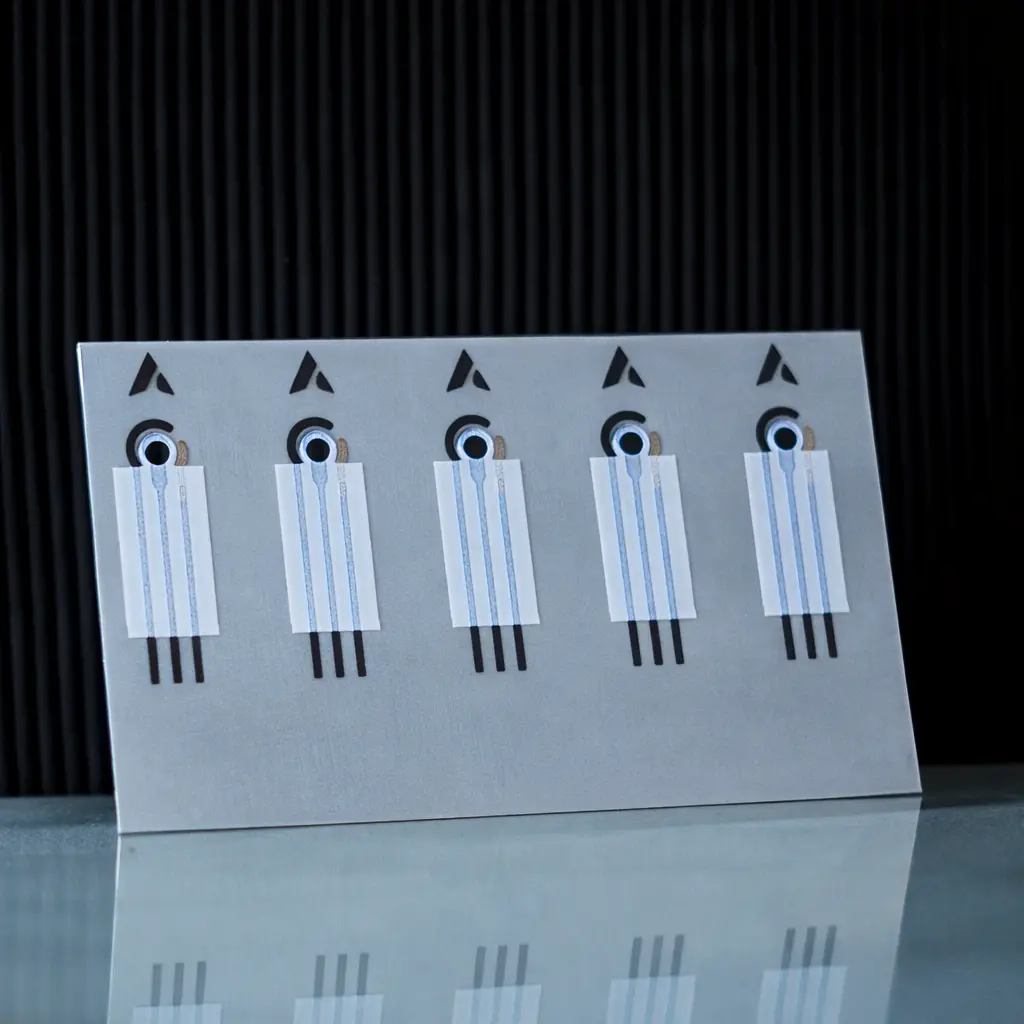

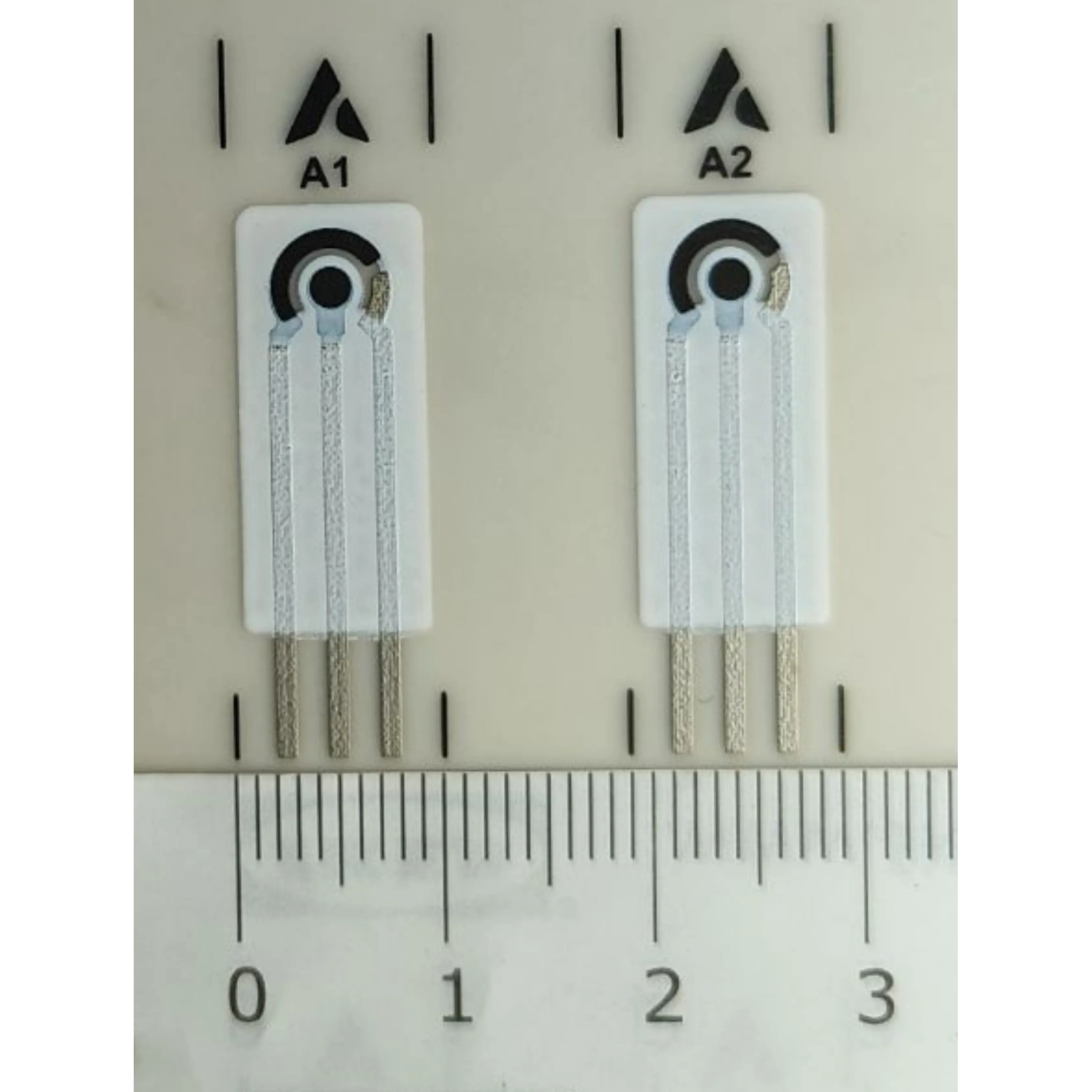

Product Name: Silver Screen Printed Electrode (3-Electrode System)
Model: SPE-C/Ag/CE-3E

The SPE-C/Ag/CE-3E is a high-performance, disposable screen-printed electrode designed for research, environmental monitoring, and healthcare diagnostics.

Its optimized geometry ensures high reproducibility, while the standard connector enables seamless integration with major electrochemical workstations.

PERFORMANCE CHARACTERISTICS

Test Solution: 2.5 mM Ferricyanide in 0.1 M KCl

• Reversible redox peak observed (Ep ≈ 70–80 mV)
• Stable baseline with low background current
• Reproducibility: < 5% RSD between electrodes (n = 20)
• Application validated for:
– Heavy metal detection (Pb²⁺, Cd²⁺)
– Glucose detection
– Ascorbic acid analysis
– DNA hybridization studies

TECHNICAL SPECIFICATION

APPLICATIONS

Environmental Monitoring:
• Heavy metal detection
• Pesticide analysis
• Water quality testing

Healthcare Diagnostics:
• Glucose detection
• Lactate monitoring
• DNA and biomarker detection

Food Safety:
• Adulterant detection
• Freshness monitoring

Education & Research:
• Electrochemical teaching kits
• Laboratory research applications

COMPLIANCE & QUALITY

• Manufactured under ISO 9001:2015 certification
• RoHS compliant
• REACH compliant
• Each batch tested using 2.5 mM ferricyanide QC protocol
